XCP-ng Center: The Windows Console That Makes Virtualization Seamless
Sometimes managing multiple hypervisor hosts feels like herding cats—command-line tools here, API calls there, and a jumble of scripts when you need to spin up or migrate VMs. XCP-ng Center cuts through the noise by giving you a polished, Windows-native GUI that talks XenAPI over HTTPS. Whether you’re standing up a proof-of-concept or running a rack-scale production pool, it keeps host and VM operations, storage, networking, and performance metrics all in one place—without the extra bloat of enterprise suites.
Core Features That Matter
| Function | What It Helps With |
| Host & Pool Management | Create pools, designate masters, add hosts, and perform live migrations or VM snapshots |
| VM Lifecycle Operations | Instantly start, stop, clone, snapshot, or quarantine VMs without touching a CLI |
| Storage Repository Handling | Manage LVM, NFS, iSCSI, Fibre Channel; hot-attach or detach storage without downtime |
| Network & VLAN Configuration | Build virtual networks and bonds, tag VLANs, hot-plug NICs, and isolate traffic per project or team |
| Real-Time & Historical Charts | Track CPU, memory, disk I/O, and network throughput per host or VM with live graphs and exportable logs |
| Secure Access Control | Integrate Active Directory, enforce role-based permissions, and use SSL/TLS-encrypted XenAPI sessions |
| Automation & Extensibility | Tap into the plugin framework or drive hosts via xe CLI and XAPI SDK scripts |
When You’ll Actually Want It
- You’re onboarding new hypervisor hosts and want a single pane of glass for pooling and live migrations.
- You need to drill into performance bottlenecks across hosts and VMs with visual charts.
- You’re standardizing access controls via Active Directory and need role-based scoping.
- You’d rather click through VM snapshots or templates than wrestle with multiple command-line flags.
- You want to automate bulk tasks using PowerShell or Python scripts against the same APIs.
Requirements and Technical Details
| Item | Detail |
| Supported OS | Windows 8.1, 10, 11 (64-bit) |
| Installer | MSI package |
| .NET Framework | Version 4.7.2 or newer |
| Protocols | XenAPI over HTTPS (default TCP 443) |
| Compatible Hosts | XCP-ng 8.x+ and Citrix Hypervisor 8.x (via compatibility layer) |
| Licensing | AGPL (free for commercial and non-commercial use) |
| Admin Privileges | Required for system-wide installation; optional for per-user install |
| Network Access | Must allow TCP 443 between console and hosts |
How to Use It (Fast Path)
- Download & Install
- Grab the latest XCP-ng Center.msi from https://xcp-ng.org/#easy-installer and double-click to run.
- Accept the AGPL license and choose Typical install.
- Launch & Connect

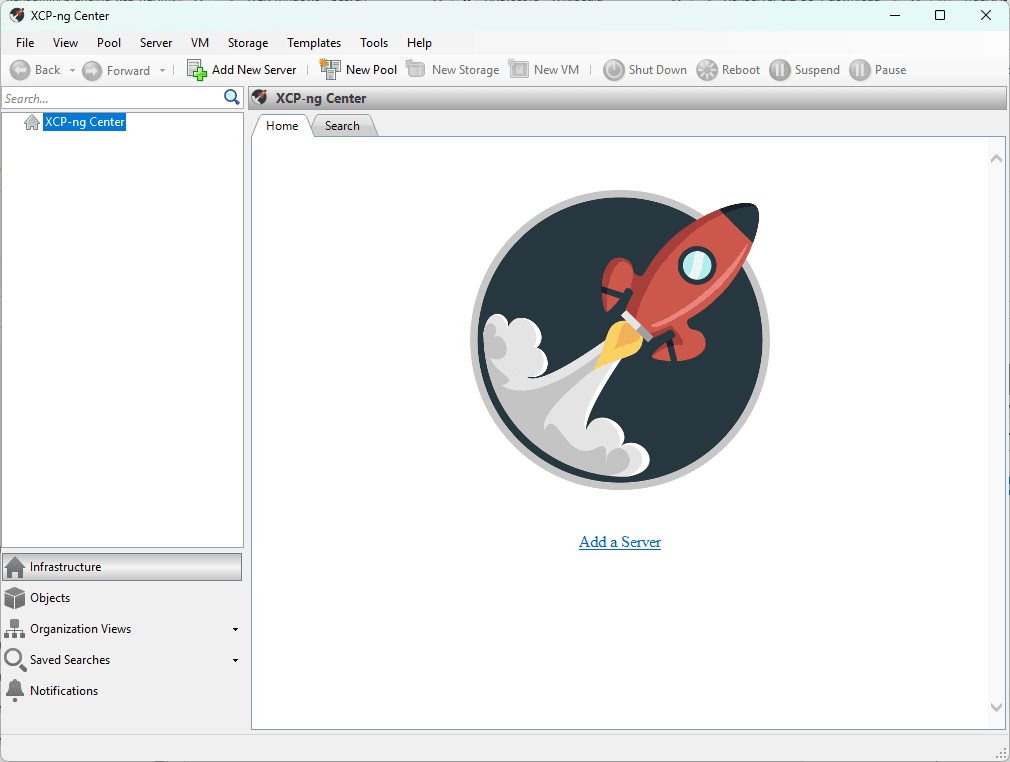

- Open XCP-ng Center, click New Connection, then enter your host’s IP/hostname and root credentials.
- (Optional) Under Advanced, enable SSL certificate verification or import your CA-signed cert.
- Create or Join a Pool
- Right-click your connected host → New Pool, pick a master, configure network and storage settings.
- Add additional hosts to grow capacity under one control plane.
- Manage VMs & Storage
- Use the left-hand tree to browse hosts and storage repositories; right-click VMs for start/stop, migration, snapshot, or clone.
- Attach or detach SRs on the fly to expand datastore access without VM downtime.
- Monitor Performance
- Select any host or VM and switch to the Performance tab for real-time charts.
- Export logs for trend analysis or compliance reporting.
What It Does Well — And What It Leaves to Others
Where it shines
- Streamlined Windows GUI for XenAPI-based hosts
- Live migration and snapshot workflows in a few clicks
- Unified view of compute, storage, networking, and performance
- Built-in AD integration and granular RBAC
- Plugin-friendly for custom dashboards or alerts
Where it’s not the hero
- No built-in firewall or deep network packet inspection
- Lacks a web-based console—Windows only
- Advanced backup scheduling or snapshot policies require third-party tools
- Doesn’t replace full-scale cloud management platforms
Final Word
XCP-ng Center isn’t about flashy dashboards or vendor lock-in—it’s about giving seasoned administrators a crisp, responsive console that ties together every facet of their XCP-ng environment. If you value direct control, clear performance insights, and seamless live operations—without the overhead of heavyweight management suites—this is the tool that keeps your virtualized world running smoothly.
